此文威爾頓氣動隔膜泵挖掘了史上很全的氣動隔膜泵設備的所有型號、基本參數、應用范圍、膜片專屬配件，桂祺密封件先告訴您以及威爾頓氣動隔膜泵專屬進口PTFE氣動隔膜泵膜片密封件的材料選擇造型和更換、維護保養故障處理資料分享！
一、對于威爾頓氣動隔膜泵，膜片是其重要的組成部分之一。威爾頓氣動隔膜泵膜片主要有以下特點：
二、在使用威爾頓氣動隔膜泵時，需要注意以下膜片相關的問題：
|
型號：P025 |
型號：P025 |
|
型號：P050 |
型號：P050 |
|
型號：P050 |
型號：PX80 |
|
型號：P100 |
型號：P100 |
|
型號：P100 |
型號：P100 |
|
型號：P100 |
型號：P100 |
|
型號：P400 |
型號：PX400 |
|
型號：PX400 |
型號：PX800 |
|
型號：PX800 |
型號：PX1500 |
|
型號：PX1500 |
型號：PX2000 |
|
型號：P4000 |
型號：P4000 |
|
型號：P025 |
型號：PX025 |
|
型號：P050 |
型號：PX050 |
|
型號：PX050 |
型號：PX100 |
|
型號：PX100 |
型號：PX200 |
|
型號：P400 |
型號：P400 |
|
型號：P800 |
型號：P800 |
|
型號：P1500 |
型號：PX1500 |

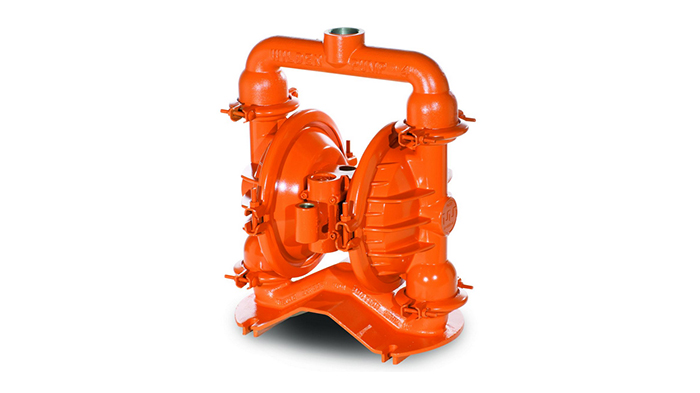

This article explores all the models, basic parameters, application ranges, and diaphragm exclusive accessories of the all-time pneumatic diaphragm pump equipment in Wilton Pneumatic Diaphragm Pump. Qisheng New Materials will first tell you and share information on the material selection, design, replacement, maintenance, and troubleshooting of the PTFE pneumatic diaphragm pump diaphragm seals exclusively imported from Wilton Pneumatic Diaphragm Pump!

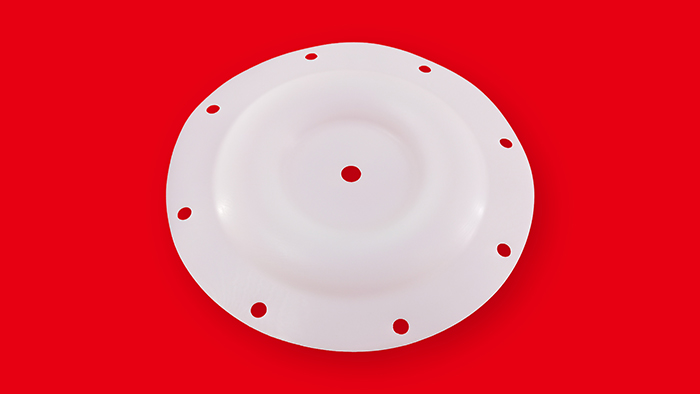

1、 For Wilton pneumatic diaphragm pumps, the diaphragm is one of its important components. The diaphragm of Wilton pneumatic diaphragm pump mainly has the following characteristics:
Material selection: The materials for the diaphragm of Wilton pneumatic diaphragm pump can be selected based on the properties of the medium and the requirements of the usage conditions, such as fluororubber, chloroprene rubber, ethylene propylene rubber, butyl rubber, polytetrafluoroethylene, etc.
Good elasticity: The diaphragm of Wilton pneumatic diaphragm pump has good elasticity and can adapt to different working conditions and media.
Corrosion resistance: The material of the Wilton pneumatic diaphragm pump diaphragm has corrosion resistance, which can adapt to different media and extend its service life.
Wear resistance: The Wilton pneumatic diaphragm pump diaphragm has good wear resistance and can adapt to high intensity and high frequency work requirements.
Easy to replace: The diaphragm of Wilton pneumatic diaphragm pump is easy to replace, without the need for professional personnel, and is simple and easy to operate.
2、 When using Wilton pneumatic diaphragm pumps, it is necessary to pay attention to the following diaphragm related issues:
Selection of diaphragm: Select appropriate diaphragm materials based on the properties of the medium and the requirements of usage conditions.
Replacement of diaphragm: Regularly replace the diaphragm according to usage and maintenance plan to ensure the normal operation and extended service life of the pneumatic diaphragm pump.
Maintenance and upkeep of diaphragms: For installed diaphragms, regular maintenance and upkeep are required, such as cleaning, lubrication, inspection, etc., to ensure their normal operation and extend their service life.
Diaphragm fault handling: If the diaphragm malfunctions, it needs to be promptly addressed, such as replacement, repair, etc., to ensure the normal operation of the pneumatic diaphragm pump.
The following table content:
|
l P025 Maximum flow rate: 19.3 LPM Maximum pressure: 8.6 bar Application scope: Low flow and low pressure applications, such as chemical spraying, printing, cleaning, etc.
l PX25 Maximum flow rate: 38.6 LPM Maximum pressure: 8.6 bar Application scope: Low flow and low pressure applications, such as chemical spraying, printing, cleaning, etc.
l P050 Maximum flow rate: 49.2 LPM Maximum pressure: 8.6 bar Application scope: Medium flow and medium pressure applications, such as chemical transportation, sewage treatment, food processing, etc.
l PX50 Maximum flow rate: 98.4 LPM Maximum pressure: 8.6 bar Application scope: Medium flow and medium pressure applications, such as chemical transportation, sewage treatment, food processing, etc.
l P080 Maximum flow rate: 76 LPM Maximum pressure: 8.6 bar Application scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l PX80 Maximum flow rate: 152 LPM Maximum pressure: 8.6 bar Application scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l P100 Maximum flow rate: 151 LPM Maximum pressure: 8.6 bar Application scope: High flow and high pressure applications, such as mineral slurry transportation, chemical processing, petrochemical industry, etc.
l PX100 Maximum flow rate: 302 LPM Maximum pressure: 8.6 bar Application scope: High flow and high pressure applications, such as mineral slurry transportation, chemical processing, petrochemical industry, etc.
l P150 Maximum flow rate: 416 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
l PX150 Maximum flow rate: 832 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
l P200 Maximum flow rate: 834 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
l PX200 Maximum flow rate: 1668 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
l P400 Maximum flow rate: 1665 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l PX400 Maximum flow rate: 3330 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l P800 Maximum flow rate: 3120 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l PX800 Maximum flow rate: 6240 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l P1500 Maximum flow rate: 6248 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
l PX1500 Maximum flow rate: 12496 LPM Maximum pressure: 8.6 bar Application scope: Applications with extremely high flow rates and medium pressure, such as chemical transportation, food processing, petrochemical industry, etc.
|
l P2000 Maximum flow rate: 10417 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l PX2000 Maximum flow rate: 20834 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l P4000 Maximum flow rate: 41667 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l PX4000 Maximum flow rate: 83334 LPM Maximum pressure: 8.6 bar Application scope: Applications with ultra-high flow rate and medium pressure, such as petrochemical, cement manufacturing, sewage treatment, etc.
l P025 Maximum flow rate: 76 LPM Maximum pressure: 8.6 bar Application scope: Low flow, low pressure applications, such as laboratory, chemical transportation, etc.
l PX025 Maximum flow rate: 152 LPM Maximum pressure: 8.6 bar Application scope: Low flow, low pressure applications, such as laboratory, chemical transportation, etc.
l P050 Maximum flow rate: 151 LPM Maximum pressure: 8.6 bar Application scope: Medium flow, low pressure applications, such as food processing, printing and dyeing, petrochemical industry, etc.
l PX050 Maximum flow rate: 303 LPM Maximum pressure: 8.6 bar Application scope: Medium flow, low pressure applications, such as food processing, printing and dyeing, petrochemical industry, etc.
l P100 Maximum flow rate: 283 LPM Maximum pressure: 8.6 bar Application scope: Medium flow, medium pressure applications, such as chemical, petrochemical, food processing, etc.
l PX100 Maximum flow rate: 566 LPM Maximum pressure: 8.6 bar Application scope: Medium flow, medium pressure applications, such as chemical, petrochemical, food processing, etc.
l P200 Maximum flow rate: 566 LPM Maximum pressure: 8.6 bar Application scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l PX200 Maximum flow rate: 1132 LPM Maximum pressure: 8.6 bar Aplication scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l P400 Maximum flow rate: 1132 LPM Maximum pressure: 8.6 bar Application scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l PX400 Maximum flow rate: 2265 LPM Maximum pressure: 8.6 bar Application scope: High flow, medium pressure applications, such as chemical transportation, sewage treatment, petrochemical industry, etc.
l P800 Maximum flow rate: 2265 LPM Maximum pressure: 8.6 bar Application scope: Ultra high flow, medium pressure applications, such as petrochemical, cement manufacturing, sewage treatment, etc.
l PX800 Maximum flow rate: 4530 LPM Maximum pressure: 8.6 bar Application scope: Ultra high flow, medium pressure applications, such as petrochemical, cement manufacturing, sewage treatment, etc.
l P1500 Maximum flow rate: 4530 LPM Maximum pressure: 8.6 bar Application scope: High flow rate, medium pressure applications, such as chemical transportation, food processing, petrochemical industry, etc.
l PX1500 Maximum flow rate: 9060 LPM Maximum pressure: 8.6 bar Application scope: High flow rate, medium pressure applications, such as chemical transportation, food processing, petrochemical industry, etc.
|
